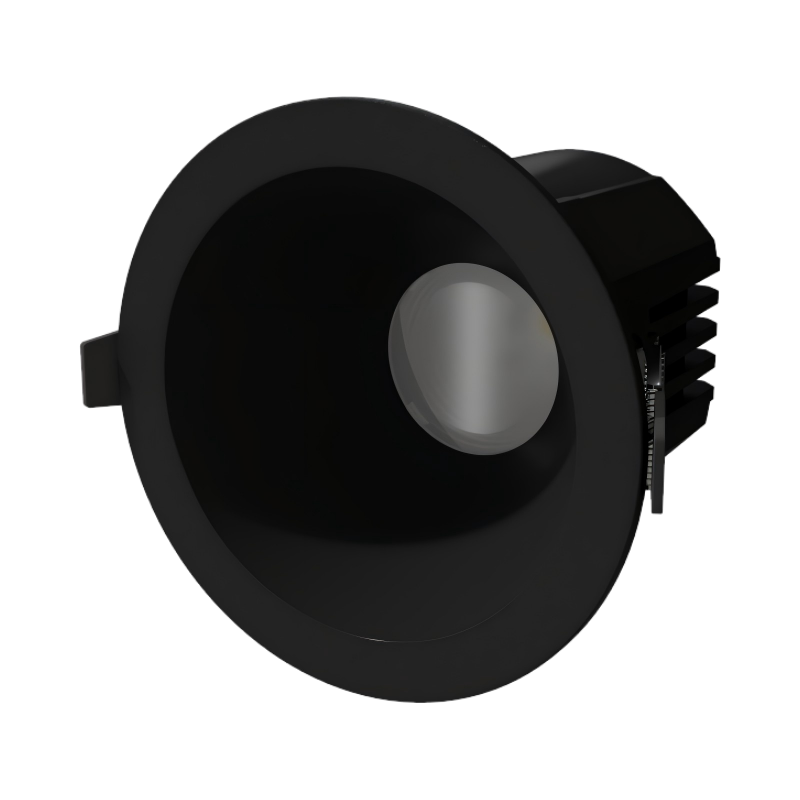

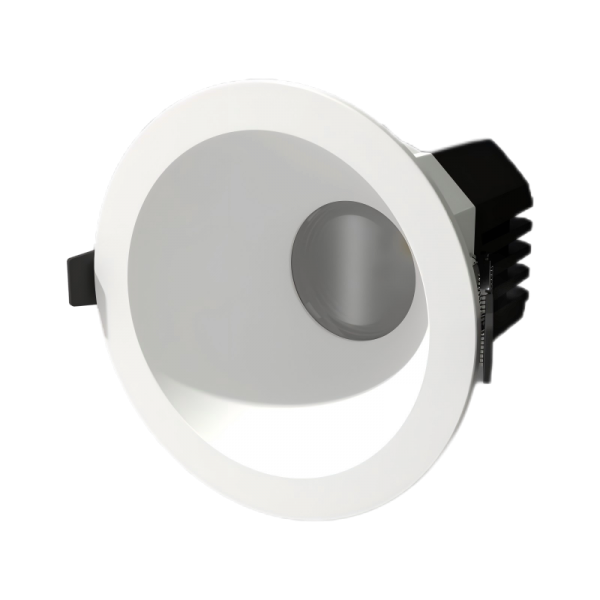

Liper GW Down Light

Short Description:

CE CB EMC
7W/10W/15W
IP44
50000h
3000K/4000K/6500K/CCT
Die-casting Aluminum
IES Available


Product Detail

Product Tags

IES FILE

区域海报图
Model Power Lumen DIM Product Size
LPDL-7GW01-Y 7W 490 N Light Size: 72*66mm
Cutout Size: 55-63mm
LPDL-10GW01-Y 10W 840 N Light Size: 90*81mm
Cutout Size: 72-80mm
LPDL-15GW01-Y 15W 1050 N Light Size: 108*95mm
Cutout Size: 87-97mm
LPDL-7GW01-YCCT 7W 490 N Light Size: 72*66mm
Cutout Size: 55-63mm
LPDL-10GW01-YCCT 10W 840 N Light Size: 90*81mm
Cutout Size: 72-80mm
LPDL-15GW01-YCCT 15W 1050 N Light Size: 108*95mm
Cutout Size: 87-97mm
