Roadway Project Special Purpose Solar Streetlight

Short Description:

Die Casting Aluminum
IES available
5.8G Radar Sensor

Product Detail

Product Tags


With the increasing shortage of earth resources, rising energy costs, and the continuous improvement of human environmental awareness, energy-saving, eco-friendly, 0-consumption solar lighting more and more be favored.

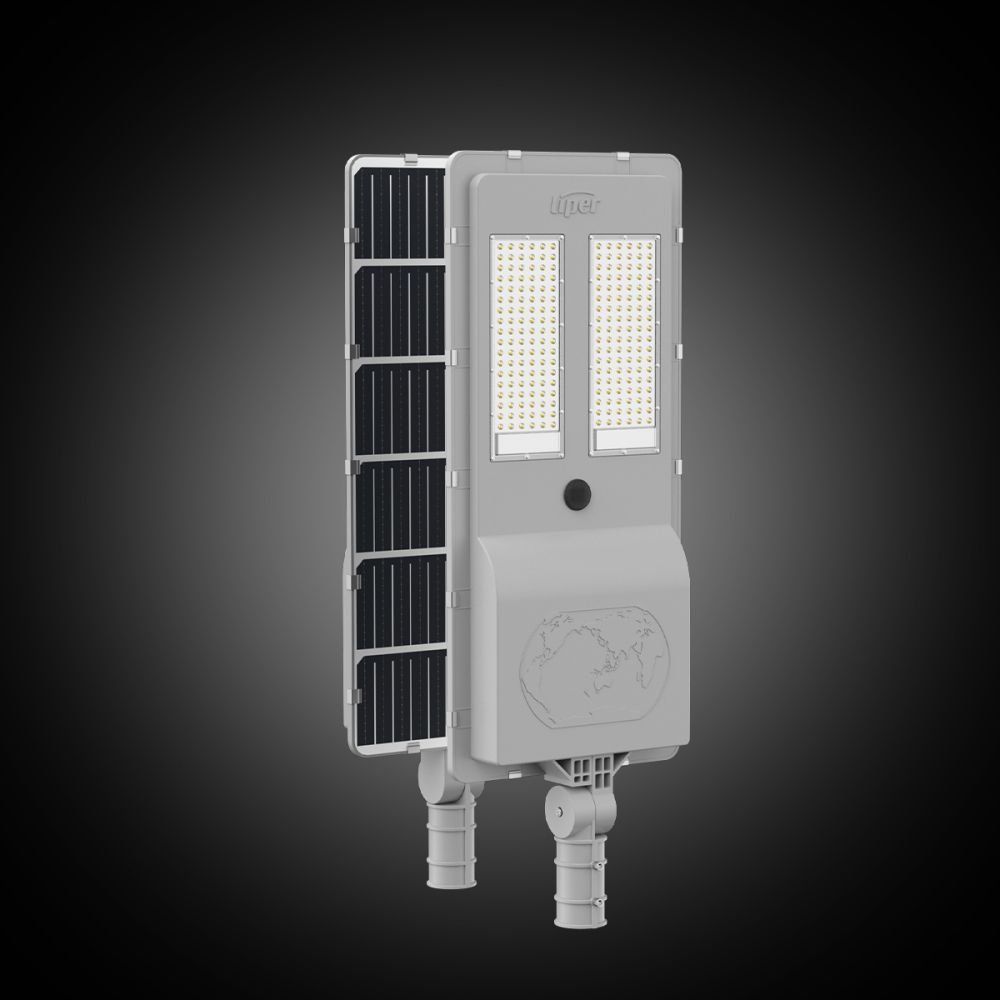

Solar lights are not only for civilian use but also extend to the project already. Take a look at our new Roadway Project Special Purpose Solar Streetlight.


Basic Specifications

Solar Panel Parameter
Material Monocrystalline silicon
Size 830*385*2.5mm
Maximum Power (Pmax) 60W
Voltage at max (Vmp) 5V
Current max (Imp) 12A
Operating Temperature -20℃ ~ 40 ℃
Lamp Parameter
Material Die-Casting Aluminum
The lithium battery lithium battery 3.2V/80AH
LED lamp beads 5050 3V/1000mA/3W
LED Quantity 1C100B 200PCS 2groups
Color Temperature 3000K-8000K
Lamp Flux 8000LM±10%
Ra ≥80
Current max (Imp) 9.6A
Radar Sensor Mode 1,5.8G radar sensing2,the sensing distance is 15 meters
Lifespan >30000 Hours
Operating Temperature -20℃ ~ 40 ℃
Defend Grade IP65 CLASSII
Discharge Time >24H
Installation Height 5-10M
Installation Distance 20-40M

Two working modes can be chosen

radar sensor mode:

1,3 hrs---100% brightness after sensing, 10% brightness without sensing

2,3 hrs---70% brightness after sensing, 10% brightness without sensing

3,50% brightness after sensing, 10% brightness without sensing, until sunrise

2,timing control+radar sensor mode:

1,1 hrs 100% brightness

2,2 hrs 70% brightness

3, 70% brightness after sensing, 10% brightness without sensing, until sunrise

After sensing, it will recover to 10% brightness after 90 seconds.
